Clarification on meteorological data

Pavan Aditya
Posts: 14
Joined: November 24th, 2017, 9:46 am
Registered HYSPLIT User: Yes

Re: Clarification on meteorological data

Post by Pavan Aditya »

sir/madam
In the plots, the units are referred to as 1.0E-14/m3. how to convert them into the daily used units of microgram/cubic meters?
glenn.rolph
Posts: 362
Joined: November 7th, 2012, 1:39 pm
Registered HYSPLIT User: Yes
Contact:

Re: Clarification on meteorological data

Post by glenn.rolph »

The three locations that the multiple trajectories in space create define the grid of trajectories that will be run by HYSPLIT. These 3 locations are the lower left point, the upper right point, and the third location sets the grid interval between the lower left point and this location. These three locations are defined in the CONTROL file. Then a program called latlon is run when you use the Trajectory/Special Runs Matrix pulldown menu these creates a new CONTROL file with all the grid locations to be run in the matrix defined by these 3 locations you initially defined. More information can be found in the help file located at: C:/hysplit4/html/S253.htm
barbara.stunder
Posts: 431
Joined: November 9th, 2012, 4:23 pm
Registered HYSPLIT User: Yes

Re: Clarification on meteorological data

Post by barbara.stunder »

The basics are that the files CONTROL and at least one meteorology file are input to HYSPLIT. More advanced runs input a file SETUP.CFG. When following the Turtorial, and something doesn't work, re-read the relevant section, open your CONTROL, and if you have a SETUP.CFG, in a text editor (Notepad), and make sure they are the same as in the Tutorial.

Make sure you have the same model inputs to concplot in the GUI window "Concentration Display" as is generally shown in the Tutorial.

Use the links at the top: +/magnifying glass, C:\> (PC), and penguin (linux), to see exactly the GUI inputs, which programs are run, the command line parameters, and what is actually being run when you click on the various GUI buttons.
Pavan Aditya
Posts: 14
Joined: November 24th, 2017, 9:46 am
Registered HYSPLIT User: Yes

Re: Clarification on meteorological data

Post by Pavan Aditya »

Sir/madam
I have downloaded the archived metrological file gdas 0.5deg resolution. I want to run a back trajectory analysis at 13 degrees N 85 degrees E location. How do I achieve this? Should I go to convert to ARL---> Global Lat lon and then set the desired coordinates? I have tried the same but It is showing an error as File missing------> Processing terminated.
please guide me in this regard.
Regards
pavan
barbara.stunder
Posts: 431
Joined: November 9th, 2012, 4:23 pm
Registered HYSPLIT User: Yes

Re: Clarification on meteorological data

Post by barbara.stunder »

The archived gdas0.5 files are already in the format for input to HYSPLIT.

My suggestion is to start at the beginning. When you open the GUI, there are the choices
Meteorology, Trajectory, Concentration, Advanced
Exit, Reset, Help
Click "Reset"
Then do Trajectory / Run Model
and Trajectory / Display / Trajectory

Then go back to
Trajectory / Setup Run
Click "Clear" then "Add Meteorology Files" and select the gdas0.5 file.
Don't change the latitude or longitude or anything else.
Run the trajectory and plot it.

Then change the latitude, longitude, etc.
Pavan Aditya
Posts: 14
Joined: November 24th, 2017, 9:46 am
Registered HYSPLIT User: Yes

Re: Clarification on meteorological data

Post by Pavan Aditya »

Sir/madam
how to find out the Height of Planetary Boundary Layer in the gdas file? I have used the Text Profile option but I am unable to see the HPBL option in the text box. Is it denoted by any other terminology?
yaqiang
Posts: 54
Joined: October 5th, 2015, 10:20 pm
Registered HYSPLIT User: Yes

Re: Clarification on meteorological data

Post by yaqiang »

You can use MeteoInfoMap to explore the ARL data file. Or use MeteoInfoLab script to extract PBLH data at a specific location from GDAS data. An example script:

Code: Select all

lat = 40.0
lon = 120.5

fn = 'D:/Temp/arl/20140301_gdas0p5'
f = addfile(fn)
pblh = f['PBLH'][:,str(lat),str(lon)]

#Plot
plot(pblh, '-bo')
ylabel('PBLH (m)')
yticks(arange(0, 501, 100))
title('PBLH at (Lat: %.2f, Lon: %.2f)' % (lat, lon))
ylim(0, 500)

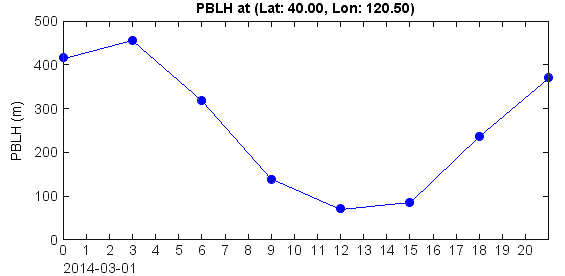

Result figure:
barbara.stunder
Posts: 431
Joined: November 9th, 2012, 4:23 pm
Registered HYSPLIT User: Yes

Re: Clarification on meteorological data

Post by barbara.stunder »

See the readme files describing the archive at https://www.ready.noaa.gov/archives.php then take another look at the text profile output.
Pavan Aditya
Posts: 14
Joined: November 24th, 2017, 9:46 am
Registered HYSPLIT User: Yes

Re: Clarification on meteorological data

Post by Pavan Aditya »

Thank you very much. That helped a lot.
Pavan Aditya
Posts: 14
Joined: November 24th, 2017, 9:46 am
Registered HYSPLIT User: Yes

Re: Clarification on meteorological data

Post by Pavan Aditya »

Sir/madam
I have a question regarding source geolocation.In the tutorial, a sampling data in form of DATEM format has been provided. How can I provide the same for my trajectory calculation? I have a GDAS file. Is it possible to obtain the data in a similar format?
