Search found 9 matches

by Reley
March 31st, 2020, 5:51 am
Forum: Dispersion Model
Topic: How to view the output file of simulation results?concentration
Replies: 8
Views: 1248

Re: How to view the output file of simulation results?concentration

Thanks.I get it. I convert to text. File. In the text file, is the last column the concentration value of the pollutant diffused to the corresponding line? like the following picture.What does 00100 represent in the picture?
by Reley
March 28th, 2020, 2:15 am
Forum: Dispersion Model
Topic: How to view the output file of simulation results?concentration
Replies: 8
Views: 1248

Re: How to view the output file of simulation results?concentration

yes,I find it.But I ran con2asc.exe on the DOS program without any response. Or have I converted to a text file? If the convertion is successful, what are the hints? Then where to find the converted Text file? :)
by Reley
March 27th, 2020, 11:21 pm
Forum: Dispersion Model
Topic: How to view the output file of simulation results?concentration
Replies: 8
Views: 1248

Re: How to view the output file of simulation results?concentration

yes,I find it.But where can I find the converted TXT file?
by Reley
March 26th, 2020, 5:32 am
Forum: Dispersion Model
Topic: How to view the output file of simulation results?concentration
Replies: 8
Views: 1248

How to view the output file of simulation results?concentration

Hello! everyone! When I use the concentration module to simulate the pollutant concentration, I set the relevant parameters in the setup run, and then visualize the final simulation results in the display(as shown below). However, I would like to know how to view the output file of the simulation, f...
by Reley
March 3rd, 2020, 3:08 am
Forum: HYSPLIT for PCs
Topic: Execute Display quantity with gsview concentration in hysplit
Replies: 3
Views: 1150

Re: Execute Display quantity with gsview concentration in hysplit

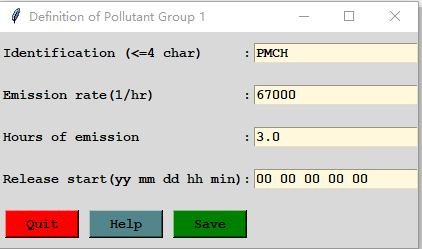

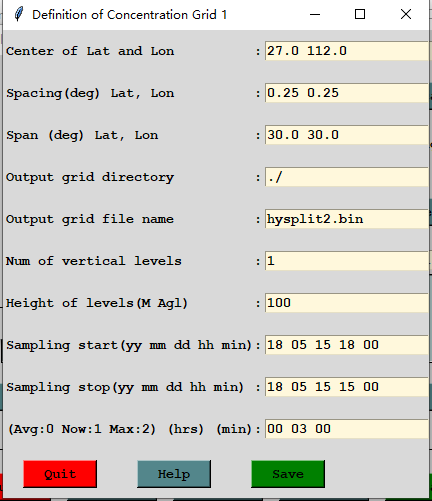

I just follow the tutorial (https://ready.arl.noaa.gov/documents/Vi ... c_cexp.mp4) method. The specific settings in the control file are as follows. Does gsview 5.0 need to register to display multiple images?
by Reley
February 29th, 2020, 3:28 am
Forum: Repositories of HYSPLIT formatted data
Topic: How to choose which meteorological data to use
Replies: 1
Views: 1077

How to choose which meteorological data to use

Hello, I want to simulate the diffusion concentration of pollutants through hysplit. I chose rp201805.gbl. But I don't know if my choice is right. In other words, I don't know which meteorological data to use when simulating. Does anyone know how to select various meteorological data according to th...
by Reley
February 28th, 2020, 4:35 am
Forum: HYSPLIT for PCs
Topic: Execute Display quantity with gsview concentration in hysplit
Replies: 3
Views: 1150

Execute Display quantity with gsview concentration in hysplit

When I use the concentration module to simulate the particle diffusion concentration, only one picture will be displayed with gsview at last, while in my model, output files will be displayed every three hours, that is, multiple pictures. Can anyone tell me why? Thank you.Like the following picture....
by Reley
December 20th, 2018, 4:15 am
Forum: Users
Topic: running multiple trajectories in time
Replies: 2
Views: 1502

Re: running multiple trajectories in time

Thank you very much! It is my fault. I forgot to save the setup in the configuration. :oops:
by Reley
December 12th, 2018, 8:22 am
Forum: Users
Topic: running multiple trajectories in time
Replies: 2
Views: 1502

running multiple trajectories in time

Hello,
I want to run multiple trajectories in time,I set my parameters in the advanced / trajectory / configuration tab, I Set the restart interval to 1 hour, trajectory duration to 4 hours, but the display result has only one trajectory starting from the source location.
I need your help,Thank you!
